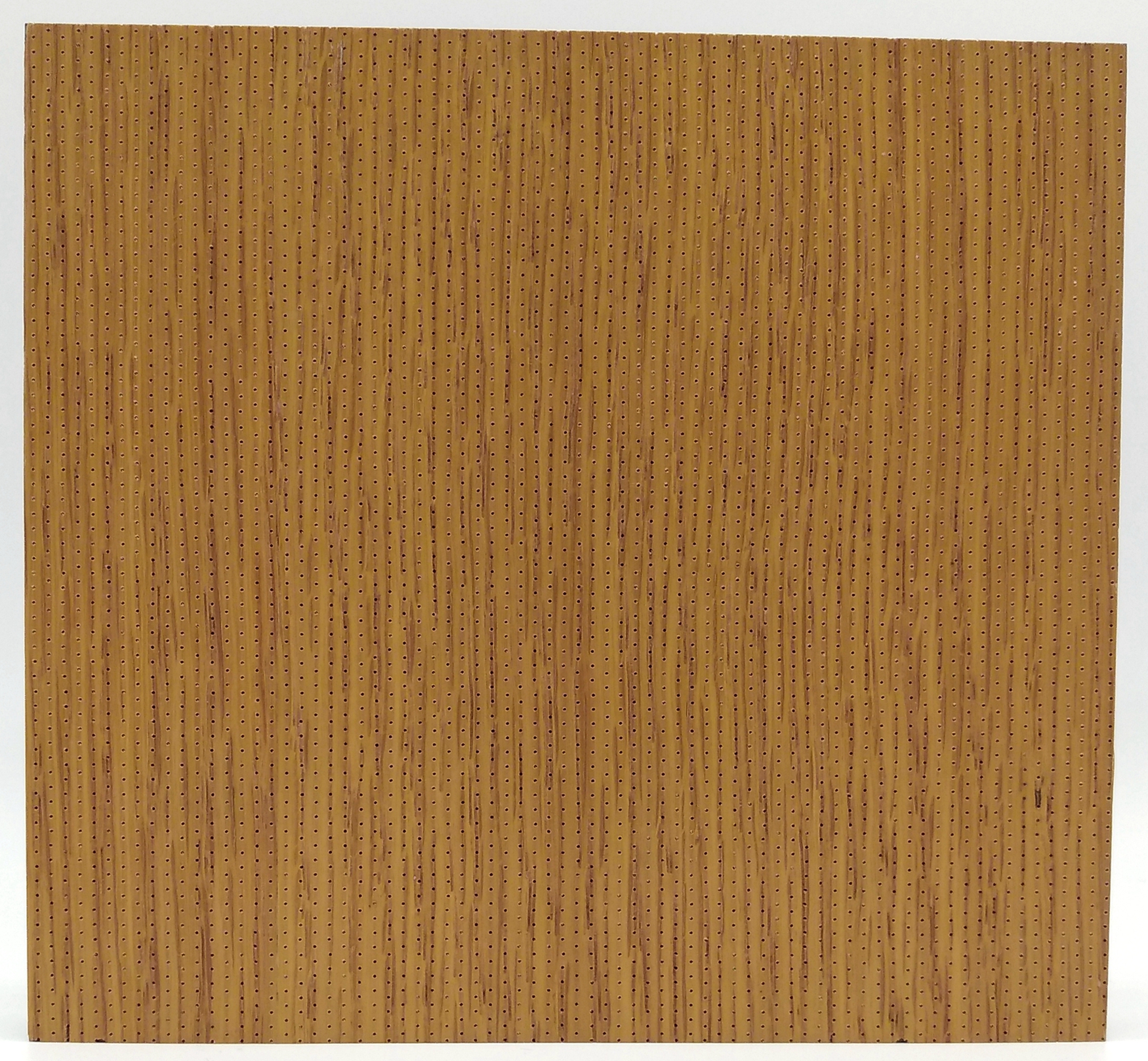

Perforated panels are the most economical way to get an acoustic treatment with a high defree of absorption .
With several variations of patterns and hole diameters , different levels of absorption and aesthetic can be achieved .
and it offer a high degree of sound absorption and a wide range of decorative finishes .
Micro perforated come in 3 standard patterns :
① 1.8/1.8/0.5mm ② 2/2/0.5mm ③ 3/3/0.5mm
Advantage of micro perforated acoustic panel :
-
The absolutely top product in our range
-
ideal for all materials and surfaces
-
Almost invisible acoustic material with high absorption
-
Very aesthetic and functional
-
Up to 600'000 holes every m² possible
-
Mildew and termite resistant
| Pattern | 1.8/1.8/0.5mm,2/2/0.5mm,3/3/0.5mm |
| Finish | Real veneer / laminate / melamine |
| Core | Charcoal board / MDF |
| Fleece | Soundtex / Freudenberg |
| Standard panel size | 1200*600mm / 2400*1200mm / TBD |
| Standard core thick | 15mm / 18mm / TBD |
| Hole option | Square / Rhombic |
| Edge option | Type A 90° clean cut / Type C 凹 all sides |
| Wood grain | Along length / Along width |
Dimensions :
The panels can be manufactured to the desired size with approval shop drawings ,
thereby requiring no filed cutting for faster installation .
Brotex Acoustic leading production capabilities make the largest panels in the industry 3050*1220mm as customized .
Sustainability :
FSC certified 70.8% pre-consumer recycled content
Acoustic Performance :
NRC = 0.90 base on ISO 354:2003 Acoustics-Measurement of Sound Absorption in a Reverberation Room .
Indoor Air Quality :
TOVs with reference to ISO 16000-9:2006/ COR1-2007 & ISO 16000-6:2021 & ISO 16000-3:2022
Fire performance :
Fire-Rated Test = Class A by ASTM E84-15b Standard Test Method for Surface Burning Characteristics of Building Materials .
Wood veneer :
The panel can be customized in a variety of wood veneers.
Brotex Acoustic lays up its own veneer in 12 units as the standard items .
More slip-matched , custom lay-up options and a control sample match all are avaliable .
Micro perforated acoustic panel job reference :
Please kindly contact us for more acoustic panel project inspire ideas .
