1200*600*25MM Classroom RAL Painting Wood Wool Cement Acoustic Panel Soundproofing Board

Guangdong Brotex Acoustic Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

1200*600*25MM Classroom RAL Painting Wood Wool Cement Acoustic Panel Soundproofing Board

Brand Name : Brotex Acoustic

Model Number : wood wool acoustic panel

Certification : FSC , SGS , ISO , Intertek

Place of Origin : China

MOQ : 50㎡

Price : $ 12.87 - $19.98 /㎡

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 10000 ㎡/ month

Delivery Time : 1-2 weeks

Packaging Details : Carton / Pallet

Material : Import New Zealand poplar wood

Panel standard thick : 15mm / 25mm / 38mm / 50mm ect

Color : Choose from RAL / DULUX ect

Panel size : 1200*600mm / 2440*1220mm / TBD

Edge treatment : 90° clean cut / 45° beveling

Finish : Nature / Panting

Anti-mould : Avaliable

Application : School / Office / Church / Stadium TBD

Contact Now

Wood wool acoutic panel offer a carbon-negative alternative ,

with competitive mechanical properties suitable for application in the interior built environment .

They are a real alternative to current building materials ,

providing low-emission and healthy interiors for public spaces .



Explor the wood wool acoustic panel multiple applications for decorative panels ,

acoustic solutions , ceiing wall .

1200*600*25MM Classroom RAL Painting Wood Wool Cement Acoustic Panel Soundproofing Board

By combining wood , cement and water , wood wool acoustic panel provide a multitude of functional solutions ,

including moisture regulation , heat accumulation , sound absorption and low emissions .

All of the wood is a proportion of FSC-certified .



You can use different shape combinations to form unique patterns that tells your own wood wool acoustic panel image story ,

with a range of beautiful colors avaliable , providingan aesthetic to the interior decorated .

  • Un-disturb room structure - yes
  • Contemporary designs - yes
  • Bespoke systems - yes
  • Surface finish : matte
  • Recyclable - yes
  • VOCs emissions

Product Introduction :

Material

Import New Zealand poplar wood

Wood fiber width

1mm / 2mm / 3mm / TBD

Panel standard thick

15mm / 25mm / 38mm / 50mm ect

Finish

Nature / Panting

Color

Choose from RAL , DULUX ect

Panel Size

1200*600mm / 2440*1220mm / TBD

Edge treatment

90° clean cut / 45° beveling



Tolerance and specifications :

The following General Tolerances Apply for all SKUs

Requirement

Dimension /

Specification

Tolerance

Beveled Edge

45%

±5%

Beveled Edge

Moisture Content

(Before Cutting Process)

8.5 mm

±2 mm

Moisture Content

(Final Inspection)

25 %

           ± 15%                       (10% to 40% MC)

Wood Fiber Thickness

1mm (3/64")

± 0.25mm (± 0.010")

Panel Flatness

5mm Maximum

Range: 0mm to 5mm



Indoor air quality :

Standard method for the testing and evaluation of Volatile Organic Chemical Emissions from indoor sources using Environmental Chambers

Version 1.2-Emission testing method for California Specificationi 01350

1200*600*25MM Classroom RAL Painting Wood Wool Cement Acoustic Panel Soundproofing Board

NRC Test Report :

According to BS EN ISO 354:2003 “Acoustics -Measurement of sound absorption in a reverberation room"

(equivalent to GB/T 20247-2006)in the Acoustic Testing Services Limited.

1200*600*25MM Classroom RAL Painting Wood Wool Cement Acoustic Panel Soundproofing Board

Fireproof Performance :

In accordance with ASTM-E84-15 Standard Test Method for Surface Burning Characteristics of Building Materials , result in Class A

1200*600*25MM Classroom RAL Painting Wood Wool Cement Acoustic Panel Soundproofing Board   1200*600*25MM Classroom RAL Painting Wood Wool Cement Acoustic Panel Soundproofing Board



Painting Color Options :
RAL or PANTONE color card or provide us the colors to match the most similar one .

1200*600*25MM Classroom RAL Painting Wood Wool Cement Acoustic Panel Soundproofing Board      1200*600*25MM Classroom RAL Painting Wood Wool Cement Acoustic Panel Soundproofing Board

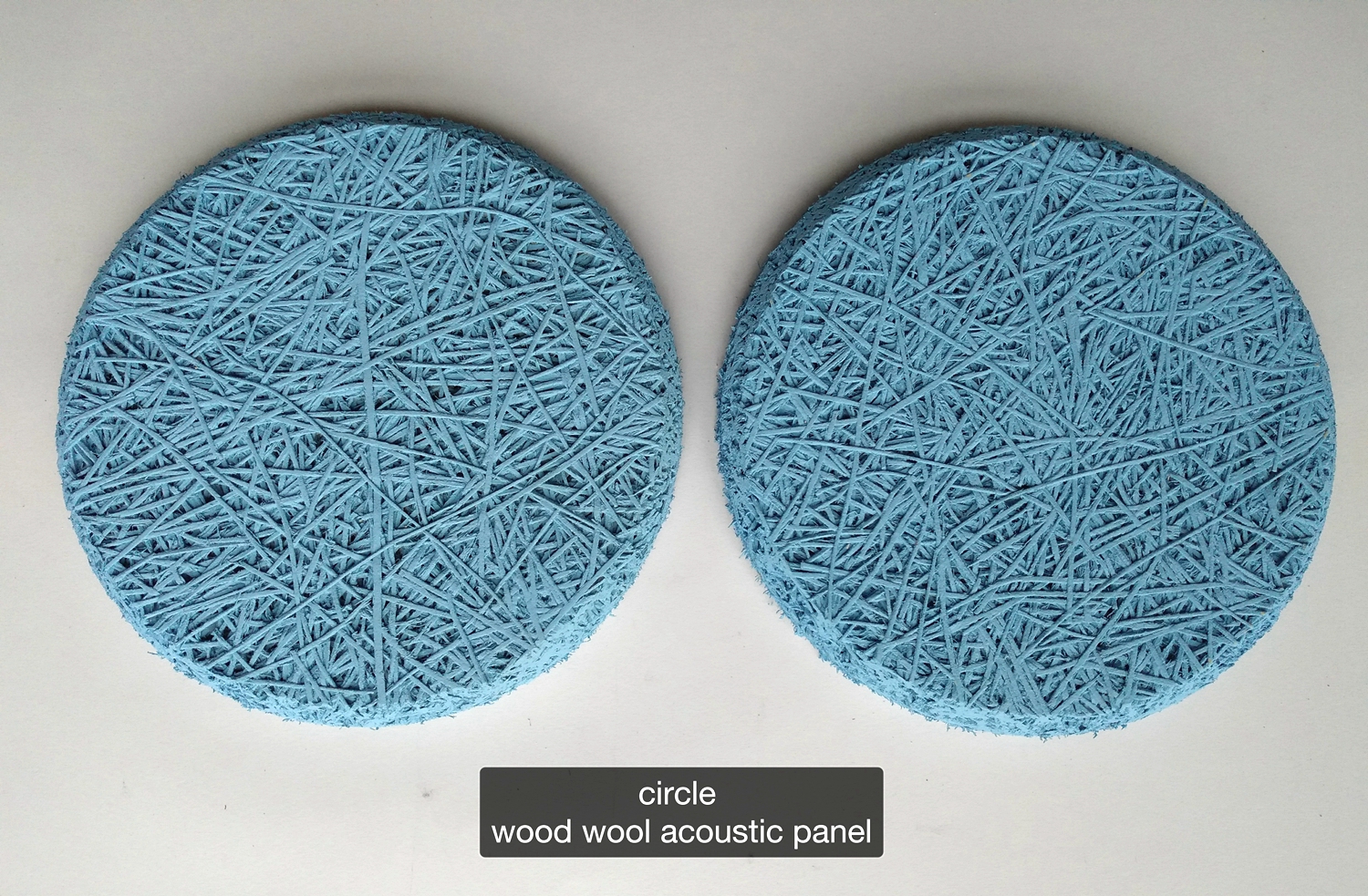

Customized wood wool acoustic panel design reference :



1200*600*25MM Classroom RAL Painting Wood Wool Cement Acoustic Panel Soundproofing Board  1200*600*25MM Classroom RAL Painting Wood Wool Cement Acoustic Panel Soundproofing Board



FAQ

1. Q: Can I install wood wool acoustic panel in wet rooms ?
A : Yes , it can be used in wet rooms without problems , we have many years of experience using in places such as swimming baths , locker rooms , bathrooms and summer houses with swimming pool .

2. Q: How many screws should I use per wood wool acoustic panel installation ?

A: panel size 600*600mm - 4 screws per panel
panel size 1200*600mm - 6 screws per panel
panel size 2400*600mm - 10 screws per panel
