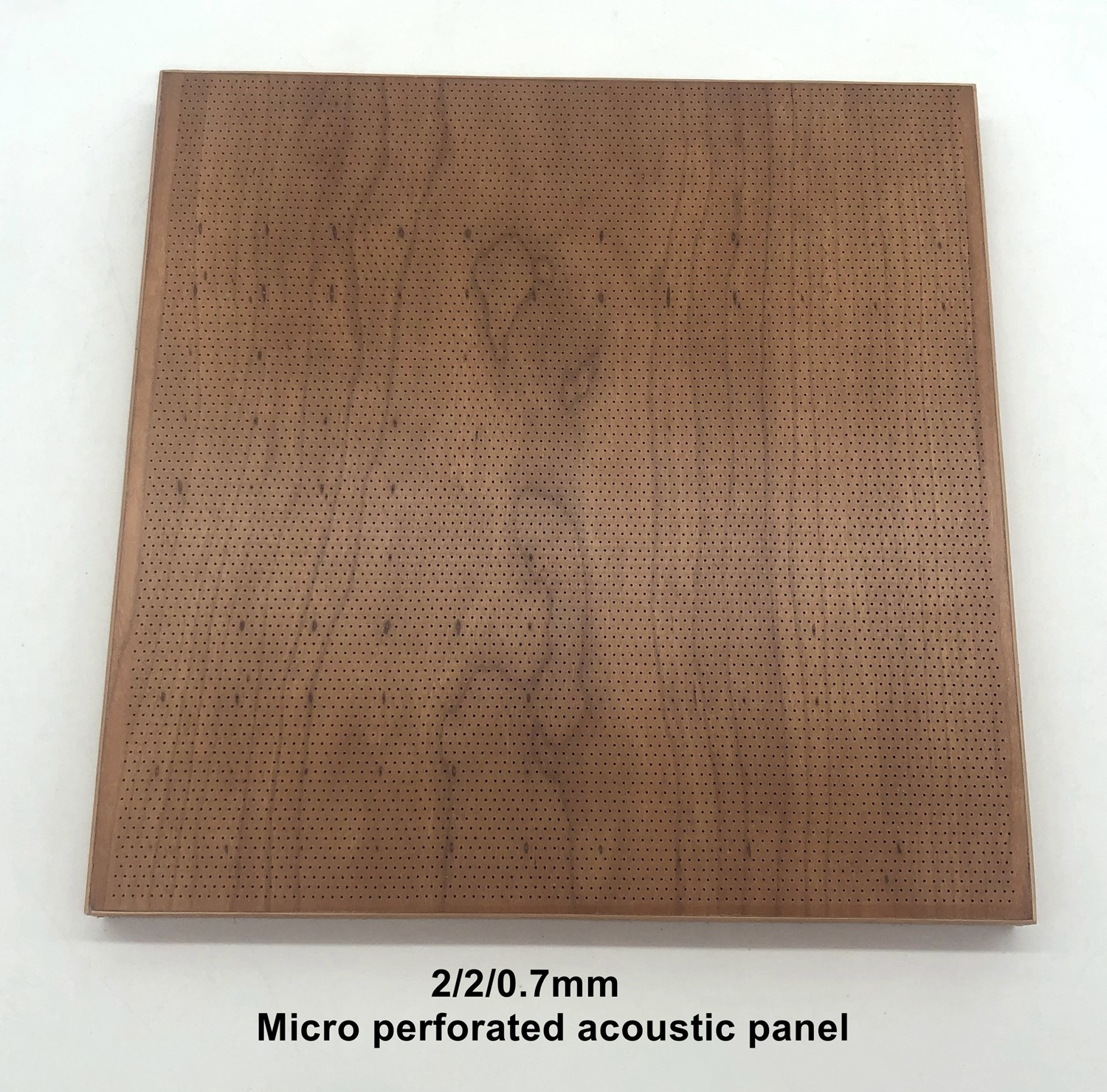

2/2/0.7mm Wooden Finish Invisible Microperforated Acoustic Panel For Walls Soundproof Board

Natural Walnut Millwork Wall Panels Timber Micro Perforated Sound Absorption Board

Micro perforated acoustic panel with high sound absorption without it being visible !

Micro is suitable for almost all surfaces, but not for outdoor applications .

Our wooden micro perforated acoustic panel is made up of a series of perforations .
Each panel has a machined groove joint for either a seamless or gap joinery .

Micro perforated come in 3 standard patterns :

① 1.8/1.8/0.5mm   ② 2/2/0.5mm   ③ 3/3/0.5mm

Advantage of micro perforated acoustic panel :

• The absolutely top product in our range

• ideal for all materials and surfaces

• Almost invisible acoustic material with high absorption

• Very aesthetic and functional

• Up to 600'000 holes every m² possible

• Mildew and termite resistant

Hole Option :

Edge Option  :

Sound absorption data (2/2/0.5mm) :

NRC = 0.90 base on ISO 354:2003 Acoustics-Measurement of Sound Absorption in a Reverberation Room .

Indoor air quality :

Eco-Friendly Test = E1 with reference to EN 717-1:2004 , analysis was performed by UV-Vis .

TVOC Test :

With reference to ISO 16000-9:2006/ COR1-2007 & ISO 16000-6:2021 & ISO 16000-3:2022

Fireproof performance :

Fire-Rated Test = Class A by ASTM E84-15b Standard Test Method for Surface Burning Characteristics of Building Materials .

Finish Option :

Chosen from Formica or Lamitak or customized laminate finish

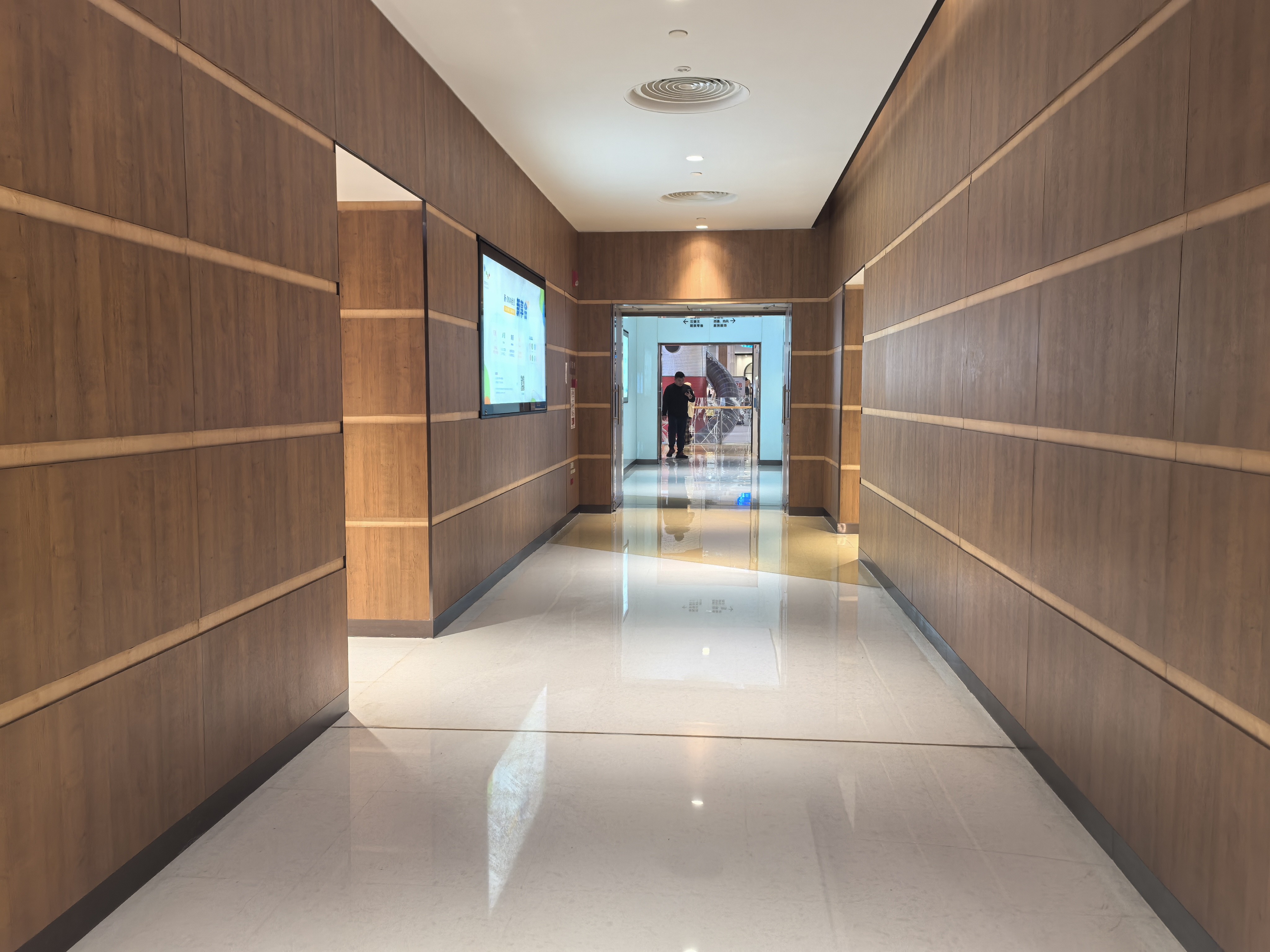

Commerical office job reference :

For more information, please feel free to contact us .
