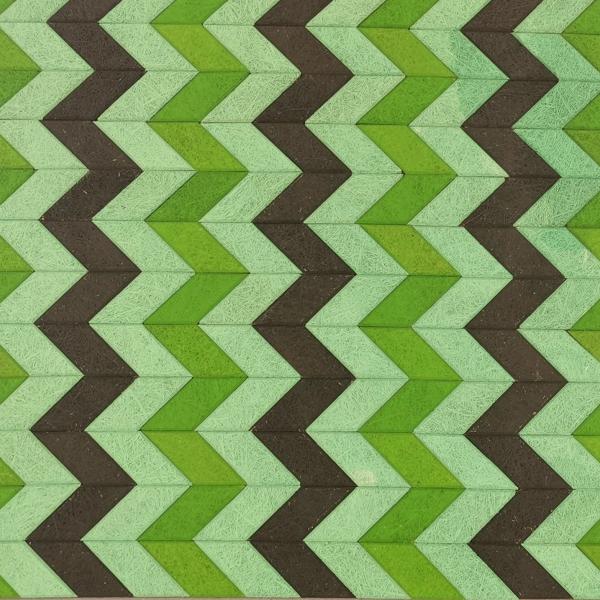

School Function Room Sound Absorption Wood Wool Acoustic Wall Panel
Wood wool acoustic panel are extremely durable , ideally suited where a high-impact sound absorption solution is required .
It combining wood , cement and water , wood wool acoustic panel provide a multitude of functional solutions ,
including moisture regulation , heat accumulation , sound absorption and low emissions .
All of the wood is a proportion of FSC-certified .
Product Introduction :
| Material | Import New Zealand poplar wood |
| Wood fiber width | 1mm / 2mm / 3mm / TBD |
| Panel standard thick | 15mm / 25mm / 38mm / 50mm ect |
| Finish | Nature / Panting |
| Color | Choose from RAL , DULUX ect |
| Panel Size | 1200*600mm / 2440*1220mm / TBD |
| Edge treatment | 90° clean cut / 45° beveling |
Tolerance and specifications :
The following General Tolerances Apply for all SKUs
| Requirement | Dimension / Specification | Tolerance |
| Beveled Edge | 45% | ±5% |
| Beveled Edge Moisture Content (Before Cutting Process) | 8.5 mm | ±2 mm |
| Moisture Content (Final Inspection) | 25 % | ± 15% (10% to 40% MC) |
| Wood Fiber Thickness | 1mm (3/64") | ± 0.25mm (± 0.010") |
| Panel Flatness | 5mm Maximum | Range: 0mm to 5mm |
Indoor air quality :
Standard method for the testing and evaluation of Volatile Organic Chemical Emissions from indoor sources using Environmental Chambers
Version 1.2-Emission testing method for California Specificationi 01350
NRC Test Report :
According to BS EN ISO 354:2003 “Acoustics -Measurement of sound absorption in a reverberation room"
(equivalent to GB/T 20247-2006)in the Acoustic Testing Services Limited.
Fireproof Performance :
In accordance with ASTM-E84-15 Standard Test Method for Surface Burning Characteristics of Building Materials , result in Class A
Painting Color Options :
RAL or PANTONE color card or provide us the colors to match the most similar one .

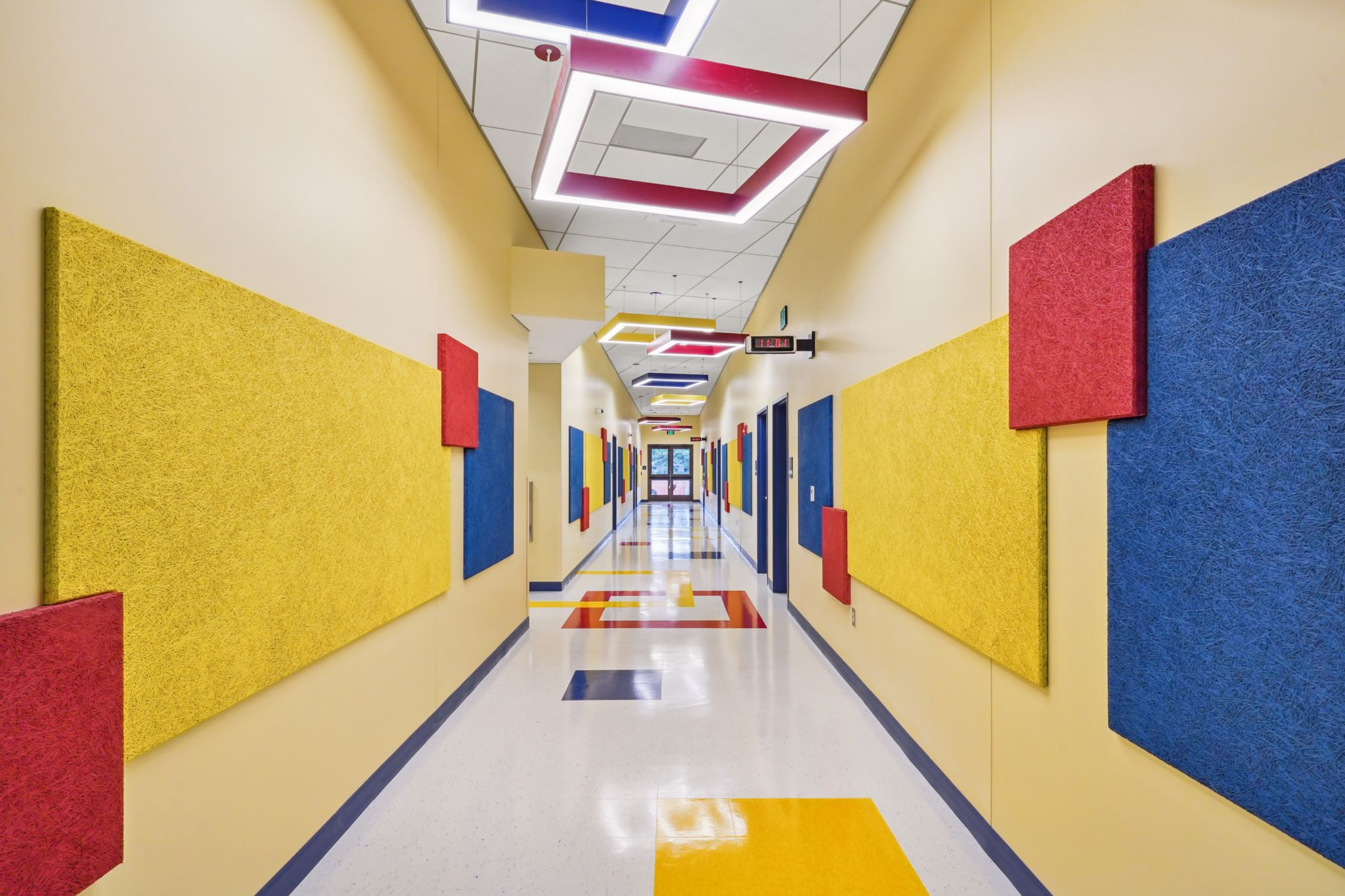

Customized wood wool acoustic panel design reference :
FAQ
1. Q: Can I install wood wool acoustic panel in wet rooms ?
A : Yes , it can be used in wet rooms without problems , we have many years of experience using in places such as swimming baths , locker rooms , bathrooms and summer houses with swimming pool .
2. Q: How many screws should I use per wood wool acoustic panel installation ?
A: panel size 600*600mm - 4 screws per panel
panel size 1200*600mm - 6 screws per panel
panel size 2400*600mm - 10 screws per panel
