Composite Aluminum Bamboo Veneer Micro Perforated Metal Acoustic Panels 4x8 Honeycomb Core

Product Categories
Guangdong Brotex Acoustic Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Composite Aluminum Bamboo Veneer Micro Perforated Metal Acoustic Panels 4x8 Honeycomb Core

Brand Name : Brotex Acoustic

Model Number : Aluminum Micro

Certification : CE / ISO / SGS / Intertek

Place of Origin : China

MOQ : 50㎡

Price : $97.42 -$109.98 /㎡

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 ㎡/ month

Delivery Time : 2-3 weeks

Packaging Details : Carton / Pallet

Pattern : Aluminum micro hole

Finish : PVDF Powder coating

Color : RAL or Customized woodgrain

Core : Aluminum

Fireproof : Non-combustible

Fleece : Soundtex / Standard

Standard panel size : 1200*600mm / 2400*1200mm / TBC

Standard core thick : 25mm / 50mm / TBC

Hole design : Standard

Edge option : For wall or ceiling

Woodgrain : Along length / Along width

Application : Auditorium / Conference hall / School / Office

Contact Now

Aluminum Honeycomb Composite Micro-perforated metal acoustic ceiling & wall panels



Aluminum honeycomb panels are made of a composite material , in the middle of the panels there are a honeycomb-like design .

It's a environmentally friendly composite decoration material with high sound absorption .



 Product  Aluminum micro perforated acoustic panel
 Pattern   Standard micro-hole
 Finish   RAL color / Woodgrain / Stone color / Brass / TBD
 Coating  PVDF
 Coating brand  PPG / AKZO / NIPPON / DNT / TBD
 Core   Non-combustible aluminum
 Panel size   Standard 1200*600mm / 2400*1200mm / TBD
 Panel thickness   25mm / 50mm / TBD
 Hole options   Standard micro hole
 Edge options   For wall / ceiling
 Woodgrain  Along length / width
 Border

 Standard / non-perforated / TBD













































Composite Aluminum Bamboo Veneer Micro Perforated Metal Acoustic Panels 4x8 Honeycomb Core

Composite Aluminum Bamboo Veneer Micro Perforated Metal Acoustic Panels 4x8 Honeycomb Core

Features :

Smooth surface finish
Excellent NRC rating 1 when used as a lay-in ceiling tile , no acoustical liner needed
Cost - effective Tegular of flat lay-in ceiling tiles easily installa standard grid
Tested and proven to achieve are avaliable after delivery
Woodgrain Available in anodized or custom printing finish

Sound Absorption Coefficient :

Based on ISO 354:2003 Acoustics - Measurement of Sound Absorption in a Reverberation Room the NRC = 1

Composite Aluminum Bamboo Veneer Micro Perforated Metal Acoustic Panels 4x8 Honeycomb Core

Fireproof performance :

Available Test based on EN13501-1:2018

Fire classification of construction products and building elements -

Part 1 : Classification using data from reaction to fire tests result fire classification A1

Composite Aluminum Bamboo Veneer Micro Perforated Metal Acoustic Panels 4x8 Honeycomb Core

Color finish options :

Composite Aluminum Bamboo Veneer Micro Perforated Metal Acoustic Panels 4x8 Honeycomb Core Composite Aluminum Bamboo Veneer Micro Perforated Metal Acoustic Panels 4x8 Honeycomb Core

Ceiling / Wall installation info :

 Composite Aluminum Bamboo Veneer Micro Perforated Metal Acoustic Panels 4x8 Honeycomb Core   Composite Aluminum Bamboo Veneer Micro Perforated Metal Acoustic Panels 4x8 Honeycomb Core

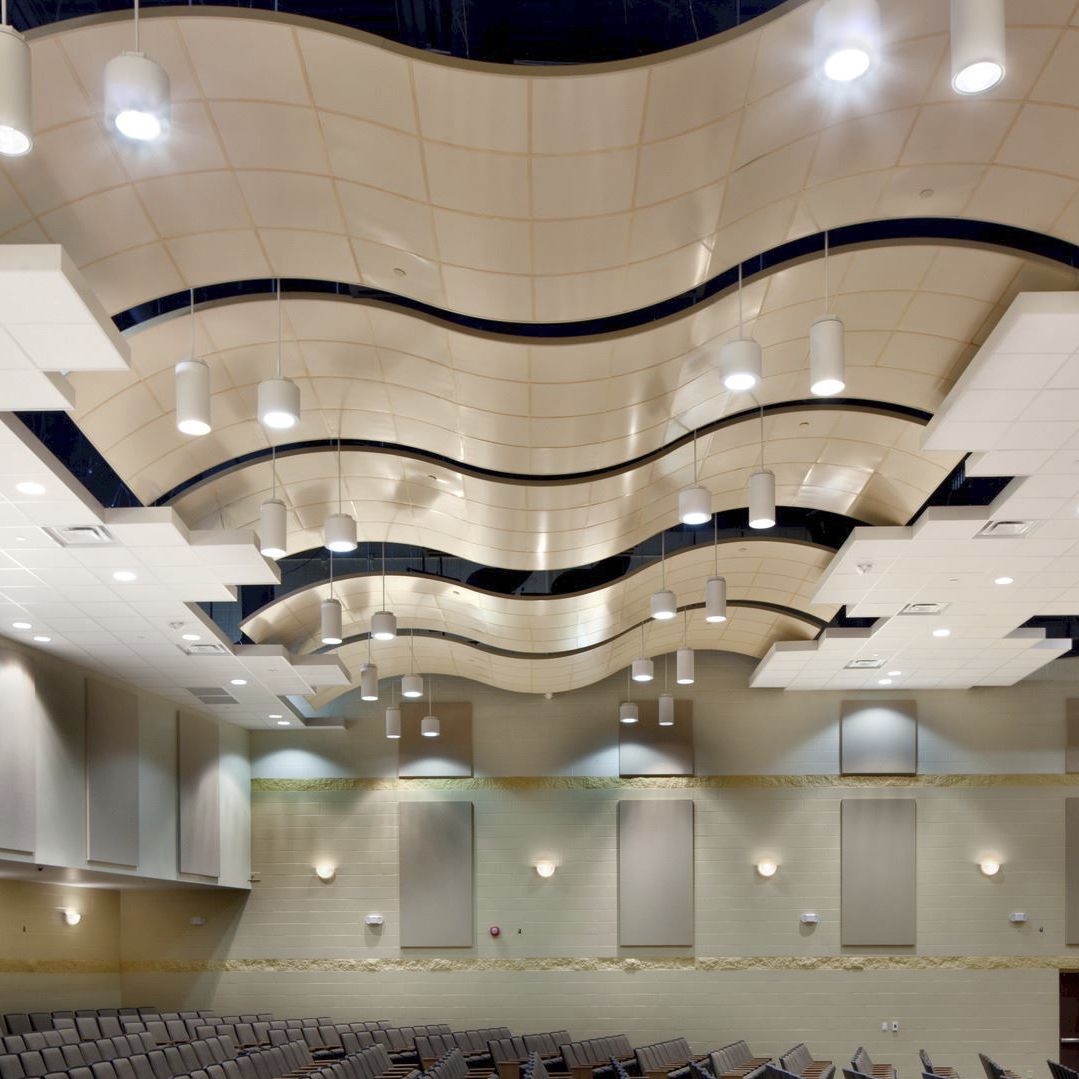

Aluminum micro perforated acoustic panel job reference :

Composite Aluminum Bamboo Veneer Micro Perforated Metal Acoustic Panels 4x8 Honeycomb Core Composite Aluminum Bamboo Veneer Micro Perforated Metal Acoustic Panels 4x8 Honeycomb Core

FAQ :



Q: How do you clean aluminum perforated panels?

    Cleaning aluminum perforated panels is a simple process. You can use a mild detergent solution       and a soft-bristled brush or a soft cloth to remove dirt and stains. Avoid using abrasive cleaners         or wire brushes as they can scratch the surface of the panel.



Q: Can aluminum perforated panels be recycled?

     Yes, aluminum perforated panels are recyclable. Aluminum is a highly recyclable material, and it       can be melted down and used to make new products.

More acoustic panel project inspire ideas please kindly contact Brotex Acoustic for details , thank you !
